Choosing the Right Outdoor Extension Cord (30 Amp vs 50 Amp + EV Charging Tips)
My Awakening at Silver Spur RV Park
During my maiden Oregon voyage, I learned a harsh lesson at Silver Spur RV Park. My brand new 30 amp RV extension cord couldn't handle the park's 50-amp pedestal, forcing an emergency gear swap. This wake-up call inspired me to create this definitive guide covering:
-
⚡ Ampacity Decoded: 30 amp RV power cords vs 50 amp RV power cords
-
🔌 NEMA Plug Scenarios: When to use NEMA TT-30 vs NEMA 14-50 connectors
-
🔋 EV Charging Truths: Safely powering Teslas with RV-grade cables
-
🛡️ Certification Essentials: UL vs ETL for heavy duty extension cords
Chapter 1: RV Extension Cord Specifications Demystified
1.1 Wire Gauge (AWG) - The Lifeline of Power Transfer
-
AWG Logic: Lower numbers = thicker wires = higher current capacity
-
10 AWG: 30-50A (Ideal for 50 amp RV extension cords)
-
12 AWG: 20-30A (Common in 30 amp RV power cords)
-
14 AWG: 15A (Dangerous for RVs - avoid!)
-
-
Code Breakdown:
-
"10/3" = 10-gauge wire with 3 conductors (hot/neutral/ground)
-
"8/4" = 8-gauge with 4 conductors (dual-hot for 50A service)
-
1.2 NEMA Plugs - Matching Connectors to Power Sources
| NEMA Type | Amperage | RV Use Case | Key Feature |
|---|---|---|---|
| TT-30R | 30A | Standard 30 amp RV cord | 120V, 3-prong |
| 14-50P | 50A | 50 amp RV extension cord | 240V/120V dual voltage |
| 5-15 | 15A | Emergency EV charging | Household outlets |
Chapter 2: Selecting Your RV Power Cord
2.1 Amp Rating - Match Your Rig's Thirst
-
Class A/C RVs: Mandatory 50 amp RV power cord (Dual AC units/appliances)
-
Travel Trailers: Typically 30 amp RV extension cord (Single AC operation)
2.2 Length vs Efficiency - The Voltage Drop Equation
-
50-foot 10 AWG Cord: 3% voltage drop at 50A
-
100-foot 10 AWG Cord: 6% drop - requires thicker 8 AWG
Pro Tip: Keep a 50 amp RV extension cord and 30 amp camper extension cord for flexibility.

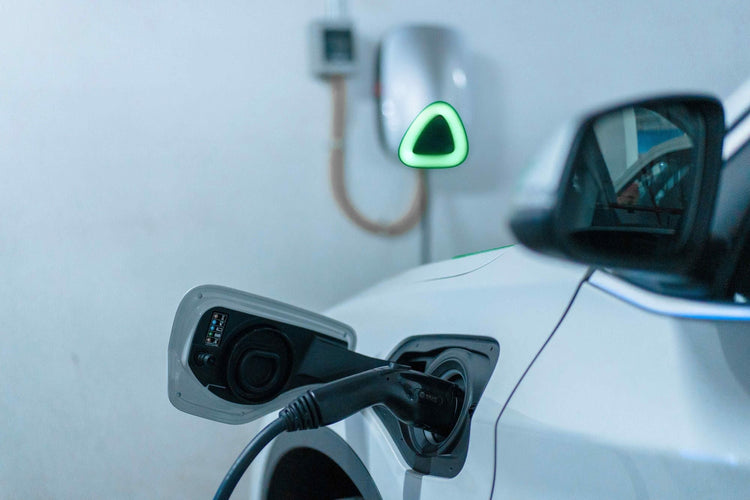

Chapter 3: EV Charging via RV Cords - Tesla Tested
3.1 Reality Check: Charging Speeds
Using RVGUARD 50 Amp Extension Cord with Tesla Mobile Connector:
| Model | Miles/Hour | kWh Added |
|---|---|---|
| Model Y | 29 | 11.5 |
| Cybertruck | 25 | 9.8 |
Critical Factors:
-
✅ Use only outdoor extension cords with NEMA 14-50 connectors
-
❌ Never daisy-chain 30 amp extension cords for EVs
Chapter 4: Safety Protocol for Heavy Duty Extension Cords
4.1 Certification Hierarchy
-
UL 471 - Gold standard for RV extension cables
-
ETL - Equivalent to UL for camper extension cords
4.2 Pre-Use Checklist
-
Inspect for "SWA" (Sunlight-Resistant) markings
-
Verify molded plug connections (rv power cable vs household types)
-
Test GFCI functionality monthly
Final Pro Tips
-
Storage: Coil rv extension cords clockwise to prevent kinking
-
Adapters: Use 30 amp to 50 amp adapter plug only for low-load scenarios
-
Upgrade Path: Consider SmartCords with surge protection
